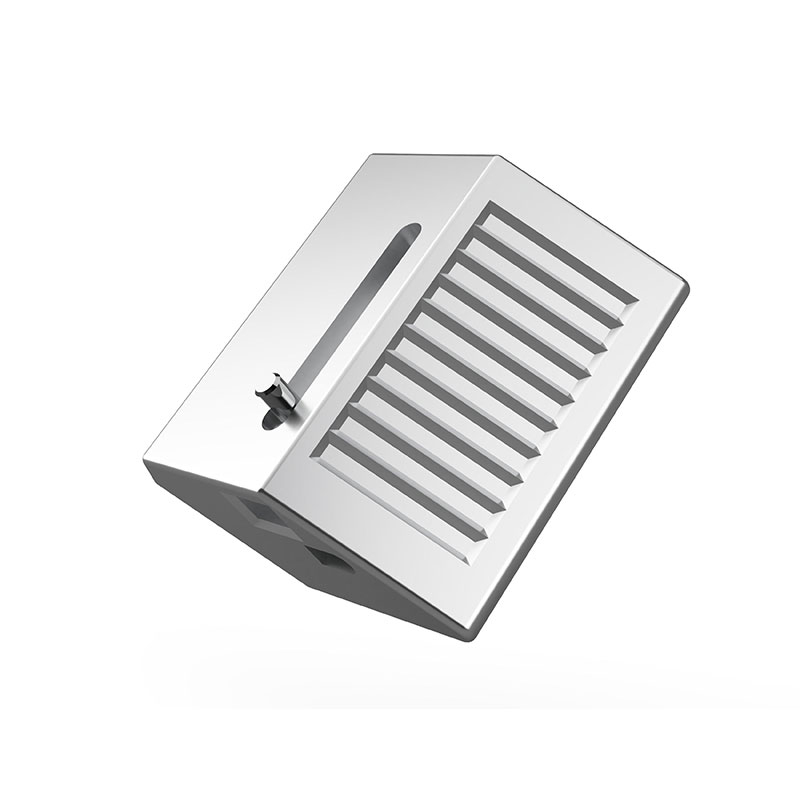

Zip Clip KL100 Rize Cable Lock (S) 50KG SWL

The Rize Cable Lock system is designed as a fast and reliable method to suspend all static loads within the mechanical, electrical and HVAC Industries.

The Specifics
This range consists of a range of wire reels and clips with a choice of Safe Working Loads:
- G 15kg SWL
- S 50kg SWL
- Y 120kg SWL
- P 300kg SWL
- N 500kg SWL

The Applications
- Wrap around applications
- Suitable for use with a wide range of fixing brackets - including UNI1, UNI2, UNI3, CLA1, MA6810, T920514.

The Technical Information
- Key free release system
- No pre-site visits required
- Any spare material can be used on following projects
- Only wire cutter required
- Can be used as a wrap around application and with a wide range of brackets
- Wire supplied in dispensing box - avoiding risk of wire bird nesting

The Installation
- Cut wire to desired length for the drop required
- Pass one end of the wire through the zip-clip in the direction of the arrow and draw enough wire to go around your fixing point
- Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
- At the other end again pass the wire through the zip-clip in the direction of the arrow
- Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
