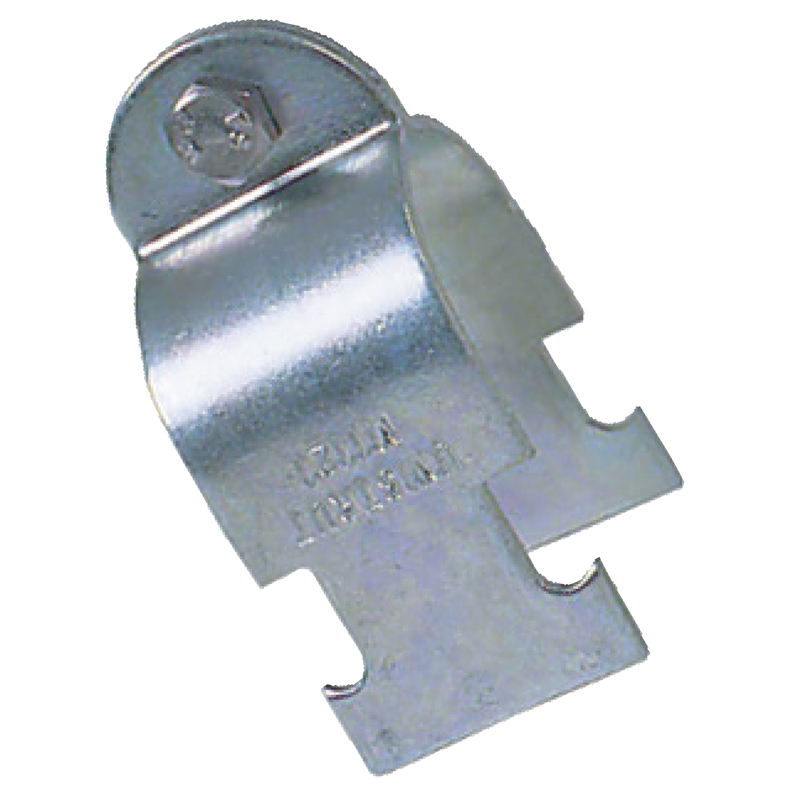

111.1-120.7mm 2pc Pipe Clamp BZP For Channel M1137

Stock Code: 12180

These Unistrut clamps are for steel pipe and are supplied complete with set screw and nut. Dimensions refer to minimum and maximum O.D. pipe to be fixed. This range is designed for use with Unistrut channel system. These clamps are also available in stainless steel.

Size/RefM1137
Pack Qty25
Diameter111.1-120.7mm
KG296
Max Load (kg)296
Box Quantity25
Pipe OD (Min-Max)111.1-120.7mm

There are no downloads for this product.
