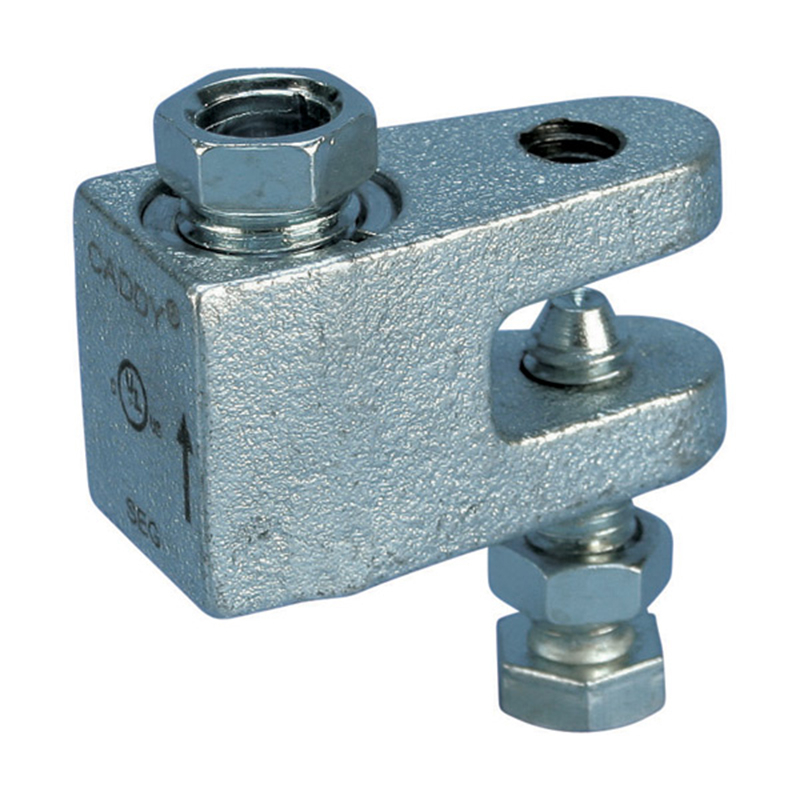

M10 Caddy Rod Lock Beam Clamp For 3-10mm Thick Flange 390002

Stock Code: 04663

• Fast, easy solution for attaching threaded rod assemblies to metal beam structures.
• Prefabricated assemblies easily lift and lock into place, helping to save time and money.
• Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position.
• Lock nut can be finger tightened, locking the rod in place.
• Works with slightly damaged threads and minor burrs on the threaded rod.

Size/RefM10
Static Load3-5mm Rod = 1100N | 6-10mm Rod = 2200N
Flange Thickness3-10mm
