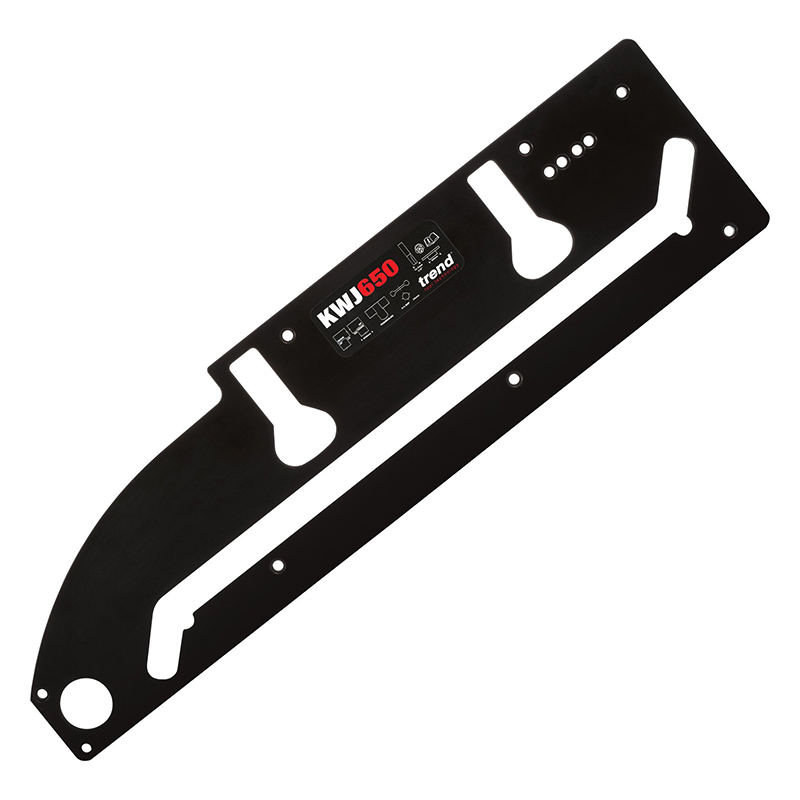

Trend 650mm Worktop Jig KWJ650

Stock Code: 08972

Tradesperson worktop jig for up to 650mm wide worktops.
Hard wearing CNC machined compact grade high pressure laminate 12mm thick jig that cuts both parts of the joint in 15 mins including set up.
Cuts Left Hand & Right Hand corners in up to 40mm thick worktops with or without anti-drop perforated edges.
Fixed lengths for 600, 616, 635 & 650mm wide worktops.
Two bolt recesses (dog bone style) for 150mm bolts.
400mm radius peninsular point & 35mm kitchen door hole.

Size/Ref	650mm Worktop Jig
