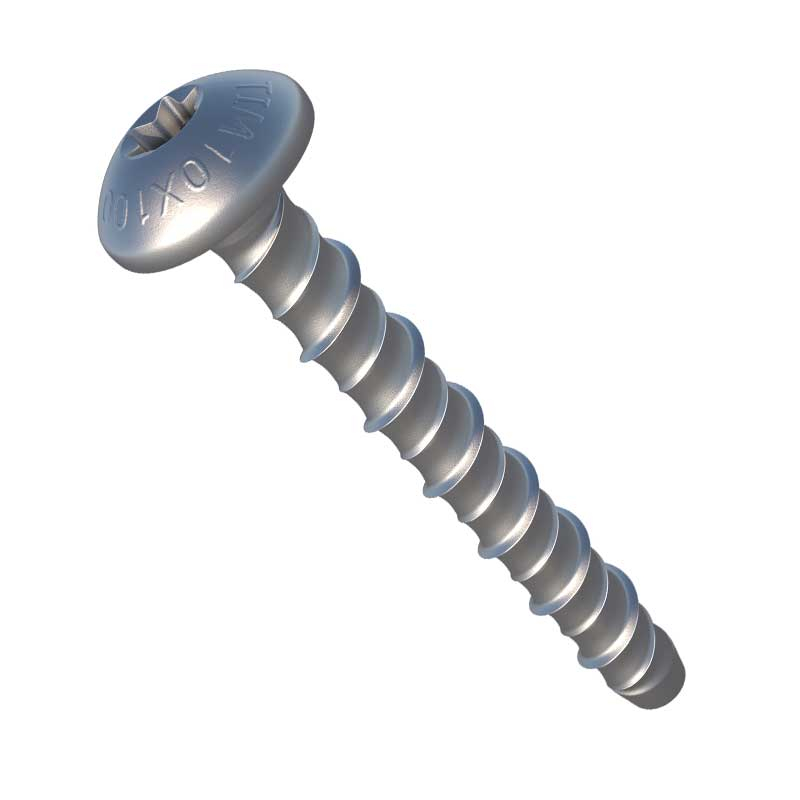

M10 X 100mm Multi-Fix Pan Head Anchor Bolts T50

Stock Code: 03693

This anchor has a unique patented concave thread design that taps its own thread and provides a rapid, low torque installation with exceptional pull-out resistance.
It also allows the user to adjust or remove the bolt ensuring a secure and accurate installation.  This stress-free, non-expansion through fixing is the new solution for heavy-duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.  This fixing has Micro Plating technology that gives a higher resistance to corrosion and enhances speed of installation.  High Low Parallel Threads for ease and high pull-out values.

Significantly reduces the installation time for service channel and bracketry, providing a secure fixing that can easily be removed when necessary.

Size/RefM10X100
Drill Diameter (mm)10
Drive TypeT50
Maximum Fixing Thickness50
Bolt Diameter12
Box Quantity50

There are no downloads for this product.
