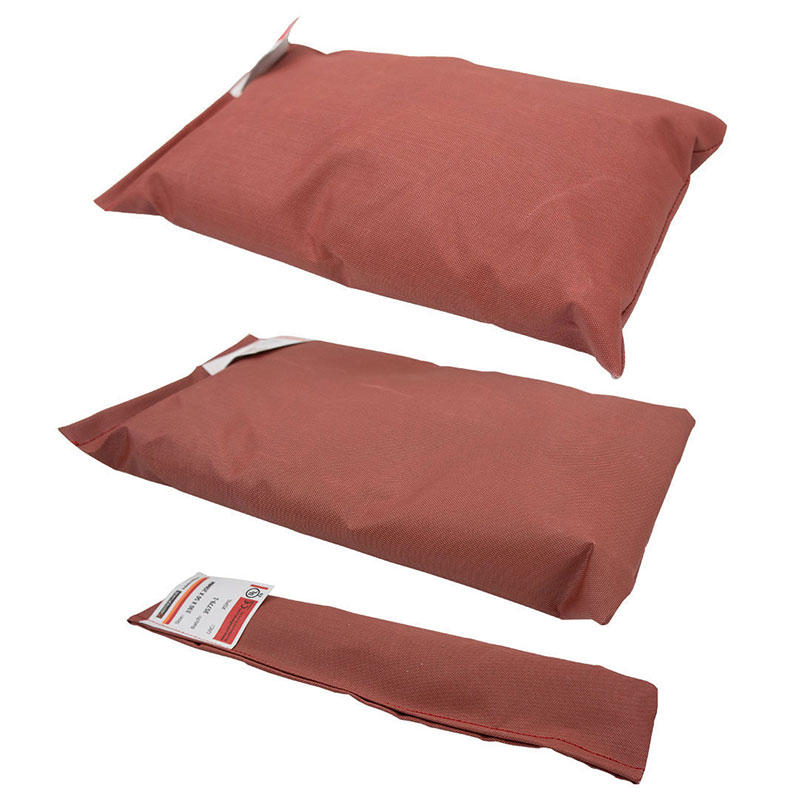

Intumescent Fire Pillow - Small - 330x200x25mm

Our fire pillows are manufactured from a hard wearing specially treated glass cloth filled with a mixture of mineral fibre and reactive expansion (intumescent) agents.

On exposure to high temperatures from a fire, the intumescent material expands and then hardens to provide a complete and durable seal against the passage of fire, smoke and hot gases.

These pillows are designed to provide an effective fire barrier, on a temporary or
permanent basis, for services which are subject to frequent changes or replacement.

Pillows can be added, removed or rearranged in an aperture to accommodate to the needs of the situation and have been tested with metallic pipes, cables, cable bunches, cable trays and cable ladders.

Tested in block wall, concrete and masonry walls and concrete floors up to 1m² area and suitable for indoor and outdoor locations pillows remain flexible between –5°C to +40°C

Features:

• CE Marked.
• UL-EU Accreditation.
• Cable trunking by UL assessment.
• Classified in accordance with EN13501-2.
• Fire Pillows tested with metallic pipes, cables, cable bunches, cable trays and cable ladders, please refer to the test certification.
• Fire Resistance EN 1366-3 EI 120.
• Fire Classification EN13501-2.
• BS 7671-2008 Chapter 42 & 52 - Electrical Installations Fire Resistance.
• Tested in accordance with EN10140-2: 2010 - Airborne Sound.
• Tested in accordance with EN10126: 2000 Air Permeability.
