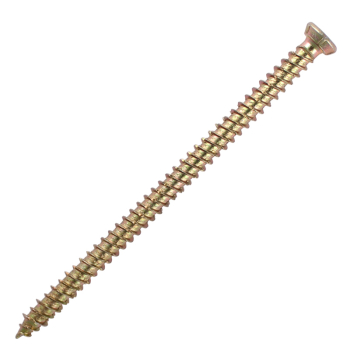

Multi Fix Masonry Screws (Countersunk)

The Multi-Fix screw offers a rapid and effective light-duty anchoring system for fixing into concrete, brick, stone, concrete block and wood.
This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.
The special thread configuration taps its own thread within the substrate and eradicates the problems associated with expansion anchors, such as splitting.
It also allows the user to adjust the screw ensuring a secure and accurate installation.

It's suitable for concrete, solid brick, perforated brick, hollow blocks, natural stone.

  • Easily adjustable
  • Removable
  • No expansion
  • Through fixing

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Size/Ref Drill Diameter Pack Qty Drive Type Maximum Fixing Thickness Drill Diameter Clearance Price
09616 6x40mm CSK MultiFix Screws Light Duty Non-Expansion ZYP 6x40 5 100 T25 35 6.5
09617 6x60mm Csk MultiFix Screws Light Duty Non-Expansion ZYP 6x60 5 100 T25 35 6.5
09637 7.5x90mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x90 6mm 100 T30 40 8mm
09667 7.5x110mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x110 6mm 100 T30 60 8mm
09684 7.5x130mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x130 6mm 100 T30 80 8mm
09618 6x80mm Csk MultiFix Screws Light Duty Non-Expansion ZYP 6x80 5mm 100 T25 55 6.5mm
09619 6x100mm Csk MultiFix Screws Light Duty Non-Expansion ZYP 6x100 5mm 100 T25 63 6.5mm
09620 7.5x40mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x40 6mm 100 T30 10 8mm
09621 7.5x50mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x50 6mm 100 T30 20 8mm
09622 7.5x60mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x60 6mm 100 T30 30 8mm
09623 7.5x70mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x70 6mm 100 T30 40 8mm
09624 7.5x80mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x80 6mm 100 T30 30 8mm
09625 7.5x100mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x100 6mm 100 T30 50 8mm
09626 7.5x120mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x120 6mm 100 T30 70 8mm
09627 7.5x150mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x150 6mm 100 T30 100 8mm
09628 7.5x180mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x180 6mm 100 T30 130 8mm
09629 7.5x200mm Csk Concrete Screws Light Duty Non-Expansion ZYP 7.5x200 6mm 100 T30 150 8mm
